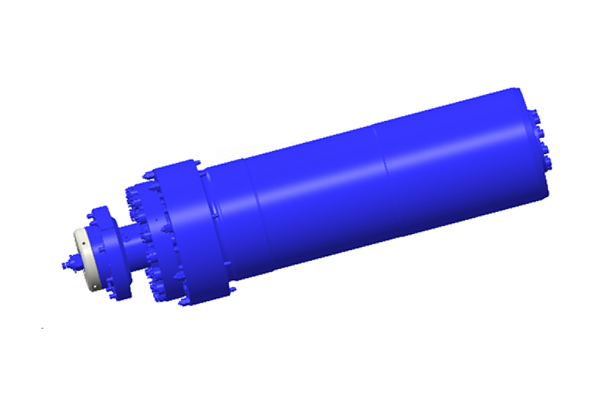

provide thrust for the press with the master cylinder
Specification:
Plunger 420mm~1000mm Stroke≤4500mm
Thrust force:
Maximum 24.7MN (Plunger 1000mm/pressure31.5MPa)

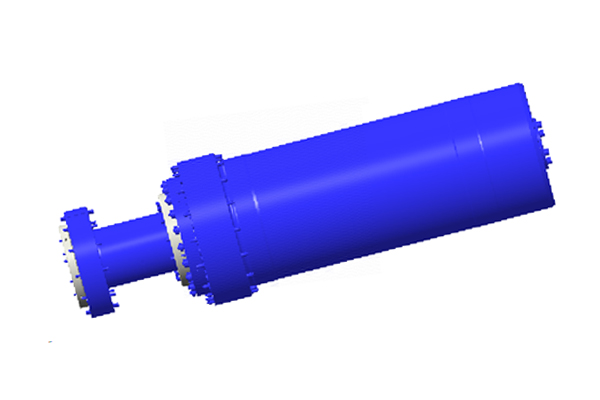

Return Cylinder
Features:
Provide return force for main cylinder and side cylinder, divided into plunger type/piston type
Specification: Piston
Bore diameter: 180mm~410mm Rod diameter: 120mm~360mm Stroke≤4500mm
Thrust force:
Maximum 2612KN (Bore diameter: 410mm/pressure31.5MPa)
Specification: Plunger
Plunger: 140mm~360mm Stroke≤3000 mm
Thrust force:
Maximum 3206KN (Plunger 360mm/pressure31.5MPa)

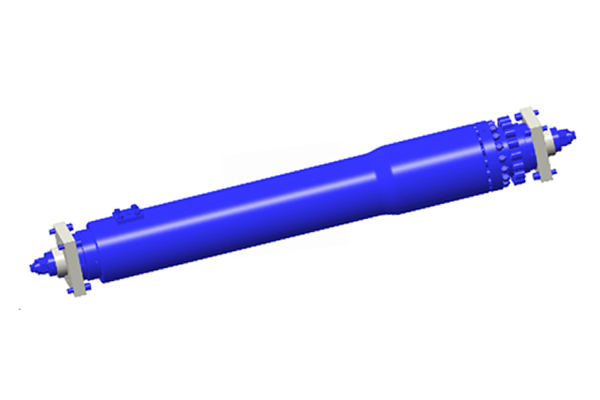

Lateral Shift Anvil Cylinder
Features:
Move the anvil laterally
Specification:
Bore diameter: 125mm~250mm Rod diameter: 90mm~180mm Stroke≤5500mm
Thrust force:
Maximum 1546KN (Bore diameter: 250mm/pressure31.5MPa)
Mobile Workbench Cylinder
Features:
Drive the workbench to move
Specification:
Bore diameter: 125mm~320mm Rod diameter: 90mm~220mm Stroke≤7500mm
Thrust force:
Maximum 2533KN (Cylinder diameter 320mm/pressure31.5MPa)
Clamping Cylinder
Features:
Tighten the clamp head that holds the steel ingot or billet
Specification:
Bore diameter: 125mm~700mm Rod diameter: 80mm~520mm Stroke≤1200mm
Thrust force:
Maximum 9621KN (Cylinder diameter 700mm/pressure25MPa)
Leveling Cylinder
Features:
Parallel lifting of blanks or workpieces
Specification:
Bore diameter: 90mm~380mm Rod diameter: 50mm~280mm Stroke≤2500mm
Thrust force:
Maximum 2835KN (Cylinder diameter 380mm/pressure25MPa)
Tilt Cylinder
Features:
Realize the lifting of the clamp head of the manipulator
Specification:
Bore diameter: 100mm~400mm Rod diameter: 50mm~300mm Stroke≤1500mm
Thrust force:
Maximum 3141KN (Cylinder diameter 400mm/pressure25MPa)
Cushion Cylinder
Features:
Absorb forging displacement/shock vibration
Specification:
Bore diameter: 75mm~300mm Rod diameter: 50mm~180mm Stroke≤500mm
Thrust force:
Maximum 1130KN (Cylinder diameter 300mm/pressure25MPa)
Centering Cylinder
Features:
Ensure the middle position of the clamp head
Specification:
Bore diameter: 50mm~190mm Rod diameter: 35mm~150mm Stroke≤1200mm
Thrust force:
Maximum 441KN (Cylinder diameter 190mm/pressure25MPa)
Front Side Shift Cylinder
Features:
Move the blank or workpiece horizontally
Specification:
Plunger: 80mm~240mm Stroke≤300 mm
Thrust force:
Maximum 1130KN (Plunger 240mm/pressure25MPa)
Rear Side Shift Cylinder
Features:
Cooperate to realize the lifting of the clamp head of the manipulator
Specification:
Plunger: 70mm~180mm Stroke≤300 mm
Thrust force:
Maximum 636KN (Plunger 180mm/pressure25MPa)
Product Advantages
• The compact structure design, the use of high-strength materials, the special heat treatment and welding processes ensure that the cylinder has a very high fatigue life under high pressure and heavy load. • The surface of the piston rod adopts a special surface treatment to ensure that the piston rod has excellent wear resistance and side load resistance • Adopt a high-load-bearing guiding structure to maximize the side load resistance of the cylinder • Reasonably design the gap between the copper sleeve and the bore of the cylinder also the surface of the piston rod to avoid the surface of the plunger from being strained by the side load • The bolts of the main cylinder and side cylinders use super nuts to prevent loosening, ensuring that the bolts do not loose • The hydraulic cylinder adopts group V seals and adds adjusting gaskets, which has excellent sealing performance, easy maintenance and long service life • The design has a wide range of temperature resistance (-25℃~+120℃), and can provide higher or lower temperature cylinders • Hydraulic cylinder built-in Displacement sensor, real-time monitoring of hydraulic cylinder stroke, precise control • The main cylinder can be equipped with a booster cylinder, and the diameter of the plunger is greatly reduced under the premise of no drop in output, which reduces the system configuration and saves costs • Configurable rotary joint, both sensitive rotation function and excellent sealing performance • There is a cushion structure inside the cylinder to reduce impact, noise, etc. • Excellent processing ability to ensure high precision of part size and form and position tolerances, so that the precision of the formed parts is high • Working pressure, size specifications, installation methods, etc. can be customized according to the customer needs
