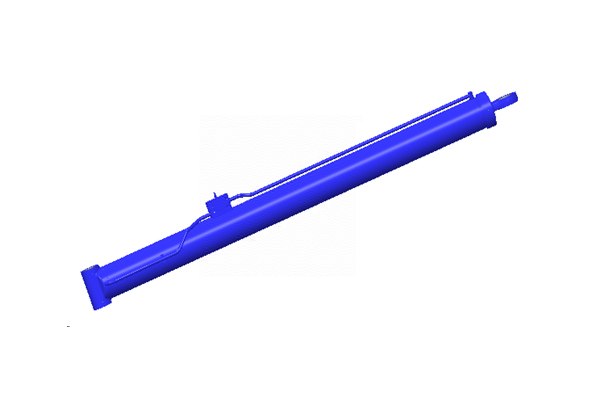

Realizing the up and down pitching rotation of the boom is the main driving force for lifting
Specification:
Bore diameter: 100mm~560mm Rod diameter: 50mm~480mm Stroke≤5000 mm
Pressure:
Maximum 36MPa

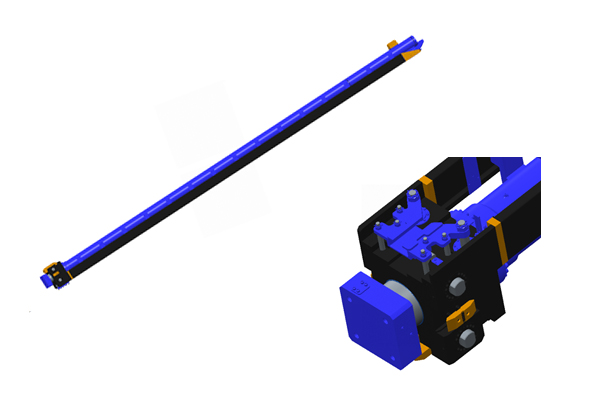

Telescopic Cylinder
Features:
Realize the linear telescopic movement of the boom
Specification:
Bore diameter: 75mm~360mm Rod diameter: 50mm~320mm Stroke≤22000mm
Pressure:
Maximum 42MPa

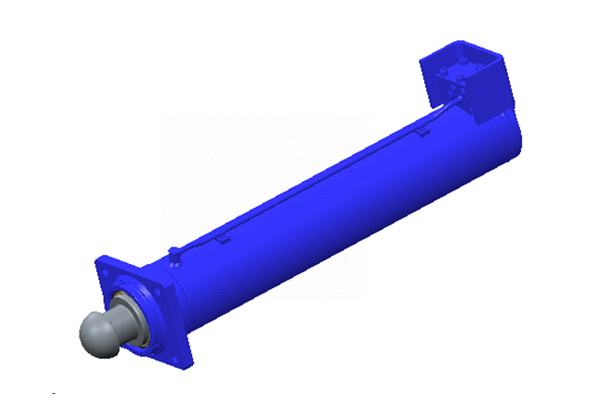

Outrigger Cylinder
Features:
Support the weight of the entire equipment when the crane is lifting
Specification:
Bore diameter: 70mm~360mm Rod diameter: 45mm~320mm Stroke≤800mm
Pressure:
Maximum 42MPa

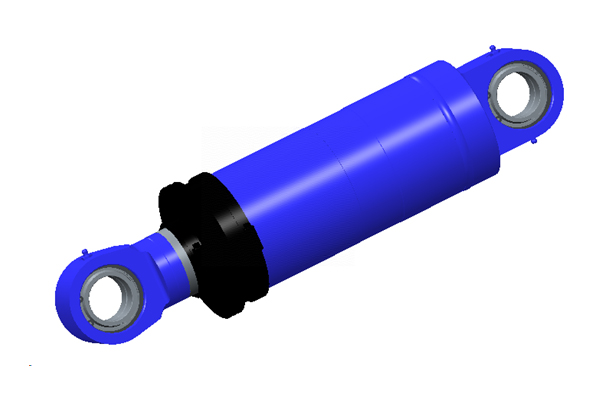

Suspension Cylinder
Features:
Damping system for crane chassis
Specification:
Bore diameter: 85mm~180mm Rod diameter: 50mm~100mm Stroke≤300mm
Pressure:
Maximum 35MPa
Outrigger Expansion Cylinder
Features:
Extend the outrigger cylinder horizontally
Specification:
Bore diameter: 50mm~75mm Rod diameter: 25mm~55mm Stroke≤2500mm
Pressure:
Maximum 35MPa

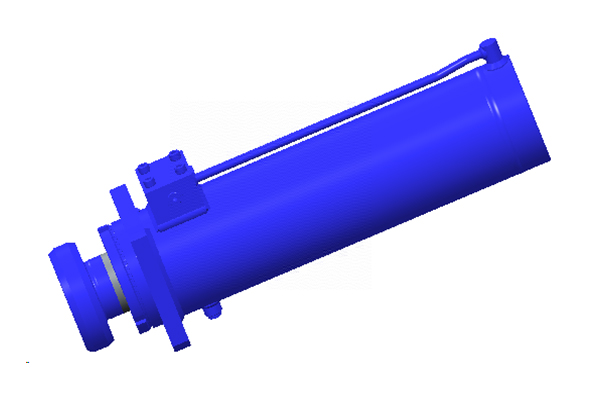

Counterweight Cylinder
Features:
For the installation of counterweights
Specification:
Bore diameter: 85mm~320mm Rod diameter: 55mm~180mm Stroke≤1500mm
Pressure:
Maximum 35MPa
Steering Cylinder
Features:
Steering system for crane chassis tires
Specification:
Bore diameter: 63mm~200mm Rod diameter: 36mm~140mm Stroke≤1000mm
Pressure:
Maximum 35MPa
Product Advantages
• The compact structure design and the use of high-strength materials ensure the extremely light weight of the cylinder • The design has a wide range of temperature resistance (-40℃~+100℃), and can provide higher or lower temperature cylinders • Mature sealing system ensures that the cylinder has no jitter or crawling problems at low speeds • The theoretical analysis and FEA calculation of the system ensure that the oil cylinder has a very high service life under heavy load • The guide sleeve adopts a special anti-corrosion technology to ensure that the cylinder will work at a long time without rusting the guide sleeve • Provide a variety of surface anti-corrosion treatment solutions: Ni/Cr plating, ceramic spraying, laser cladding, QPQ, etc. • It can be designed and integrated according to requirements, including P.O. check valves, load holding valves, sequence valves, relief valves, pressure measuring joints, etc. • It can be designed into two-stage or multi-stage cylinder according to customer's requirements, and can control two rodless cavity oil circuits independently • For all road cranes, the cylinder head block and guide rail assembly can be configured • Working pressure, size specifications, installation methods, etc. can be customized according to the customer needs
