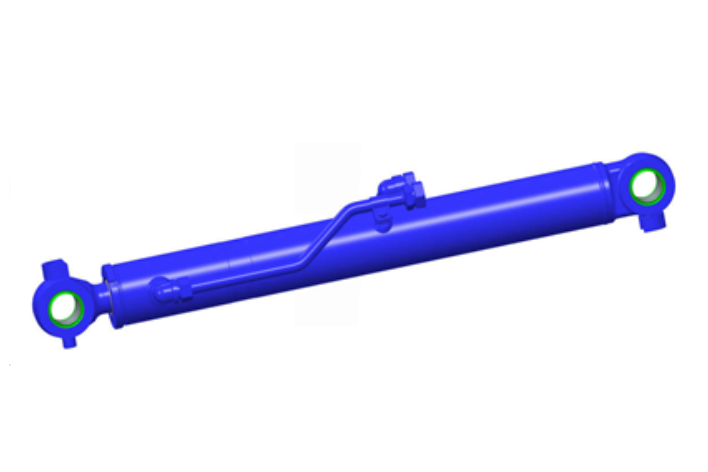

Bore diameter: 50mm~105mm Rod diameter: 25mm~70mm Stroke≤1000 mm
Thrust force:
Maximum 255KN (Bore diameter: 105mm/pressure29.4MPa)

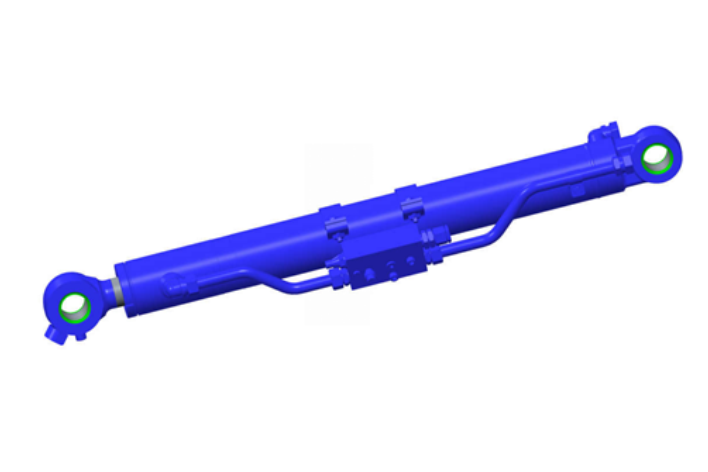

Stick Cylinder
Features:
Control the movement of the forearm
Specification:
Bore diameter: 50mm~115mm Rod diameter: 25mm~70mm Stroke≤1000mm
Thrust force:
Maximum 305KN (Bore diameter: 115mm/pressure29.4MPa)

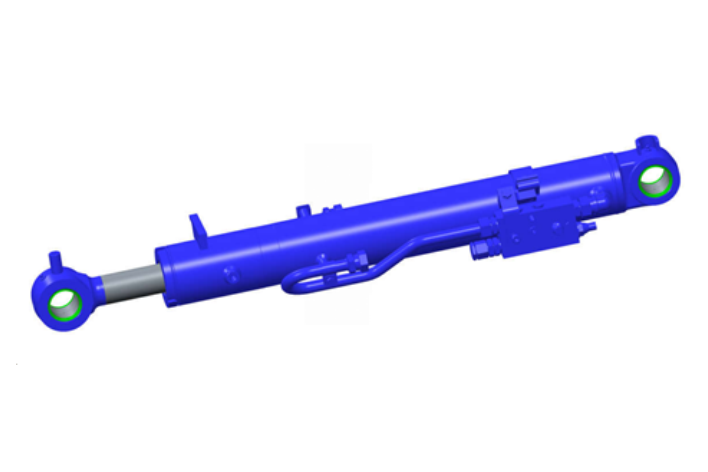

Boom Cylinder
Features:
Control the lifting motion of the big arm
Specification:
Bore diameter: 50mm~125mm Rod diameter: 25mm~75mm Stroke≤1000mm
Thrust force:
Maximum 361KN (Bore diameter: 125mm/pressure29.4MPa)

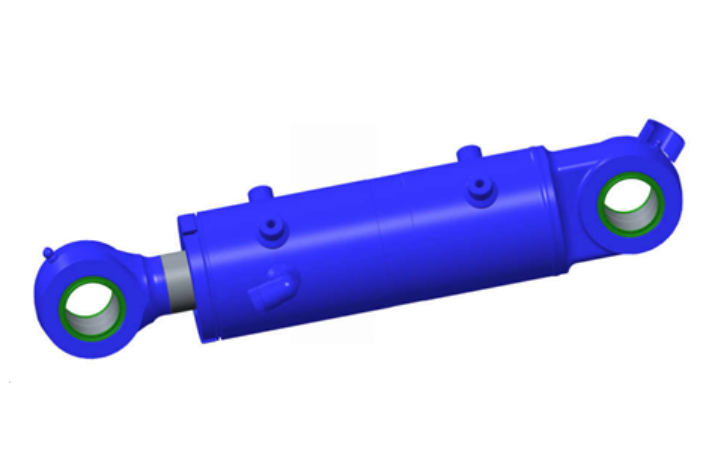

Bulldozing Cylinder
Features:
Control the action of the bulldozer
Specification:
Bore diameter: 50mm~140mm Rod diameter: 25mm~80mm Stroke≤250mm
Thrust force:
Maximum 453KN (Bore diameter: 140mm/pressure29.4MPa)

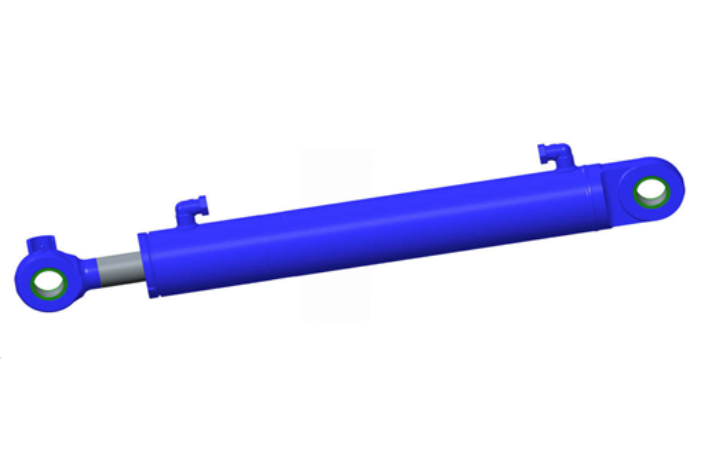

Rotary Actuator
Features:
Deflection of the big arm
Specification:
Bore diameter: 50mm~120mm Rod diameter: 25mm~75mm Stroke≤1000mm
Thrust force:
Maximum 333KN (Bore diameter: 120mm/pressure29.4MPa)
Product Advantages
• The compact structure design, the use of high-strength materials, the special heat treatment, and welding processes ensure that the cylinder has a very high fatigue life under high pressure and heavy load. • Provide a variety of surface anti-corrosion treatment solutions: Ni/Cr plating, ceramic spraying, laser cladding, QPQ, etc. • It can be designed and integrated with P.O. check valves, pipe burst safety valve, oil pipes, etc. • The design has a wide range of temperature resistance (-25℃~+120℃), and can provide higher or lower temperature cylinders • The mature cushion design makes the bucket reduce the impact of the cylinder during the excavation operation without reducing the excavation force and affecting the work efficiency • For the earrings of the integral die forgings, you can choose the standard self-lubricating bushings, and also can be configured according to customer needs
