Bore diameter: 480mm~1000mm Rod diameter: 400mm~730mm Stroke400mm~825mm
Pressure:
up to 35MPa

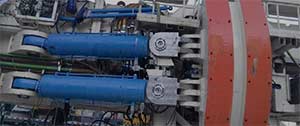

Thrust Cylinder
Features:
Provide the thrust of TBM forward tunneling
Specification:
Bore diameter: 300mm~600mm Rod diameter: 200mm~400mm Stroke1100mm~2050mm
Pressure:
up to 35MPa
Torque Cylinder
Features:
Used for TBM direction adjustment and transmission of cutter head torque
Specification:
Bore diameter: 220mm~450mm Rod diameter: 125mm~260mm Stroke200mm~260mm
Pressure:
up to 35MPa
Shield Cylinder
Features:
Stabilize the cutter head/prevent the jamming caused by convergence
Specification:
Bore diameter: 130mm~360mm Rod diameter: 80mm~220mm Stroke100mm~420mm
Pressure:
up to 25MPa Special requirements up to 35Mpa
Product Advantages
• The use of high-strength materials, special heat treatment and welding processes ensure that the cylinder has a very high fatigue life under high pressure and heavy load. • Part of the cylinders are specifically designed to meet high vibration conditions during TBM operation • Design a reliable sealing configuration suitable for TBM working conditions for different types of cylinders • It can be designed and integrated with P.O. check valves, counterbalance valves, etc. according to requirements • The design has a wide range of temperature resistance (-20℃~+80℃), and can provide higher or lower temperature cylinders • The theoretical analysis and FEA calculation of the system can make the design of the cylinder structure more optimized and safer • Working pressure, size specifications, installation methods, etc. can be customized according to the customer needs
